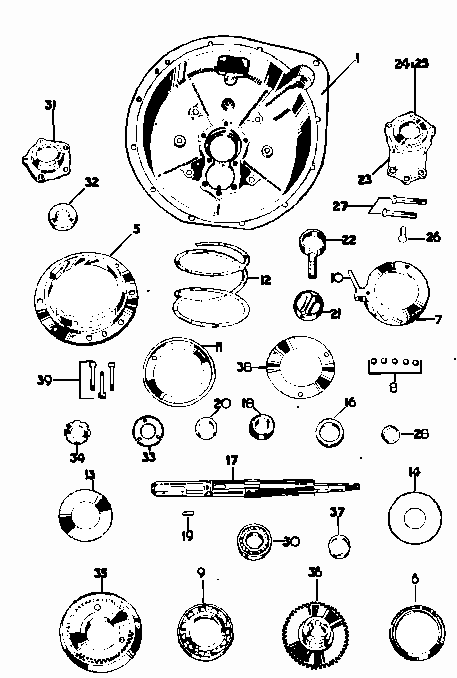

Figure 1B- Bell Housing and Top Gear

1, Front cover and bell housing. 5, Outer member (top gear). 6, Thrust ring (top gear). 7, Actuating ring (top gear). 8, Balls for actuating ring. 9, Top-gear thrust bearing. 10, Operating strut ( top gear). 11, Compressor plate (return spring). 12, Return spring (top gear). .13, Spring disc for top gear (inside). 14, Spring disc for top gear (outside). 16, Clutch thrust washer. 17, Input shaft. 18, Eccentric for pump. 19, Key for eccentric. 20, Bearing sleeve. 21, Pump cylinder. 22, Pump phunger. 23, Front cover (small). 24 and 25, Front outboard bearing and locknut. 26, Setscrew for small front cover. 27, Setscrew for small front cover. 28, Distance washer for input shaft. 30, Front bearing. 31, Oil-seal housing. 32, Front oil-sea1. 33, Oil throwcr. 34, Input-shaft ring nut. 35, Inner clutch cone. 36, Driving member ( top gear). 37, Driving-member bush. 38, Anchor plate (top gear). 39, Bolt.
