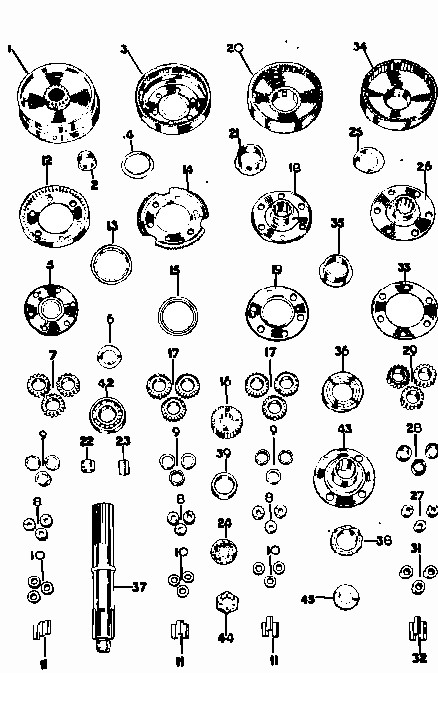

Figure 1C- Running Gear

1, Outer clutch-cone assembly. 2, Bush for third-speed sunwheel. 3, Brake drum (second speed). 4, Bush for second-speed brake drum. 5, Planet support (third speed). 6, Bush for planet support (third-speed). 7, Planet wheels (third-speed). 8, Bearings for first, second, and third planets. 9, Floating bushes for first, second, and third planets. 10, Distance pieces for first, second, and third planets. 11, Rivets for planets and distance pieces. 12, Annulus for third speed. 13, Bush for third-speed annulus. 14, Planet carrier (second-speed). 15, Bush for planet carrier. 16, First and second speed sunwheel 17. Planet wheels (first and second-speed). 18, Planet carrier (first speed).) 9, Planet support (first-speed). 20, First brake drum and reverse sun assembly. 21, Reverse sunwheel bush. 22, Output-shaft bush (front). 23, Output-shaft bush (rear). 24, Output-shaft bush washer. 25, Reverse sunwheel washer. 26, Planet carrier (reverse). 27, Reverse planet-wheel bearing. 28, Reverse planet floating bush. 29, Planet wheels (reverse). 31, Distance pieces for reverse planets. 32, Bearing rivets. 33, Planet support (reverse). 34, Brake drum (reverse). 35, Reverse drum bush. 36, Rear thrust bearing. 37, Out-put shaft. 38, Speedometer driving gear. 39, Distance piece. 42, Rear bearing. 43, Rear coupling flange. 44 , Output-shaft nut. 45, Output-shaft washer.
